Galvanized/ Galfan Wire
Galvanized Steel Wire can be divided into two categories: Electro Galvanized Wire & Hot Dipped Galvanized.
Galvanized Steel Wire is designed to prevent rusting and shiny silver in color. It is solid, durable and extremely versatile, thus is widely used by landscapers, craft makers, ribbon manufacturers, jewelers and contractors.
Its aversion to rust makes it extremely useful and widely used in industry, agriculture fields, communication equipment, medical equipment, weaved mesh, brush and so on.
Specifications
| Wire of Diameter | 0.9mm – 7.0mm |
| Coil Weight | 50kgs / 500kgs (Approximate) |
| Ref. Standard | BS 443 : 1982 / JIS G3552 |
| Tensil Strength | 350 N/mm2 – 550 N/mm2 |
| Diameter (mm) | Heavy Galvanized Class A (g/m2) | Electro Standard Class C (g/m2) |
|---|---|---|
| 0.90 | 155 | 25 |
| 1.00 | 165 | 25 |
| 1.20 | 180 | 25 |
| 1.40 | 195 | 30 |
| 1.65 | 205 | 30 |
| 1.85 | 215 | 40 |
| 2.15 | 230 | 45 |
| 2.50 | 245 | 45 |
| 2.80 | 255 | 50 |
| 3.20 | 265 | 60 |
| 3.80 | 275 | 50 |
| 4.40 | 280 | 70 |
| 5.20 | 290 | 80 |
| Size (mm) | Heavy Galvanized Class A (g2) |
Electro Standard Class C (g2) |
T/S (N/mm2) | Elongation (%) |
|---|---|---|---|---|
| 0.90 | 155 | 25 | (515) 470-550 | 16-24 |
| 1.25 | 180 | 25 | (505) 460-520 | 16-24 |
| 1.60 | 205 | 30 | (480) 450-500 | 16-24 |
| 2.00 | 230 | 45 | (470) 440-485 | 16-24 |
| 2.50 | 245 | 45 | (455) 435-480 | 16-24 |
| 3.15 | 265 | 60 | (435) 420-460 | 16-24 |
| 4.00 | 280 | 70 | (420) 400-440 | 16-24 |
| 5.00 | 290 | 80 | – | – |
Galfan Wire
Hot-dipped Galvanized Zink (90%) Aluminium (10%) steel wire
Size range : 0.90 mm to 8.00 mm
Packing : 50 kgs, 500 kgs
Coil I/D : 400 mm, 450 mm
Coil O/D : 750 mm, 800 mm
Coating Requirements
| Nominal diameter (mm) | Coating requirements | |||
|---|---|---|---|---|
| Heavily Galvanized | Standard Galvanized | |||
| Min. coating mass (g/m2) | No. of dips | Min. coating mass (g/m2) | ||
| 1 min. | ½ min. | |||
| 1.20 to 1.39 | 180 | 1 | 1 | 25 |
| 1.40 to 1.64 | 195 | 2 | – | 30 |
| 1.65 to 1.84 | 205 | 2 | – | 30 |
| 1.85 to 2.14 | 215 | 2 | – | 40 |
| 2.15 to 2.49 | 230 | 2 | 1 | 45 |
| 2.50 to 2.79 | 245 | 2 | 1 | 45 |
| 2.80 to 3.19 | 255 | 3 | – | 50 |
| 3.20 to 3.79 | 265 | 3 | – | 60 |
| 3.80 to 4.39 | 275 | 3 | – | 60 |
| 3.30 to 5.19 | 280 | 3 | 1 | 70 |
| 5.20 to 8.19 | 290 | 3 | 1 | 80 |

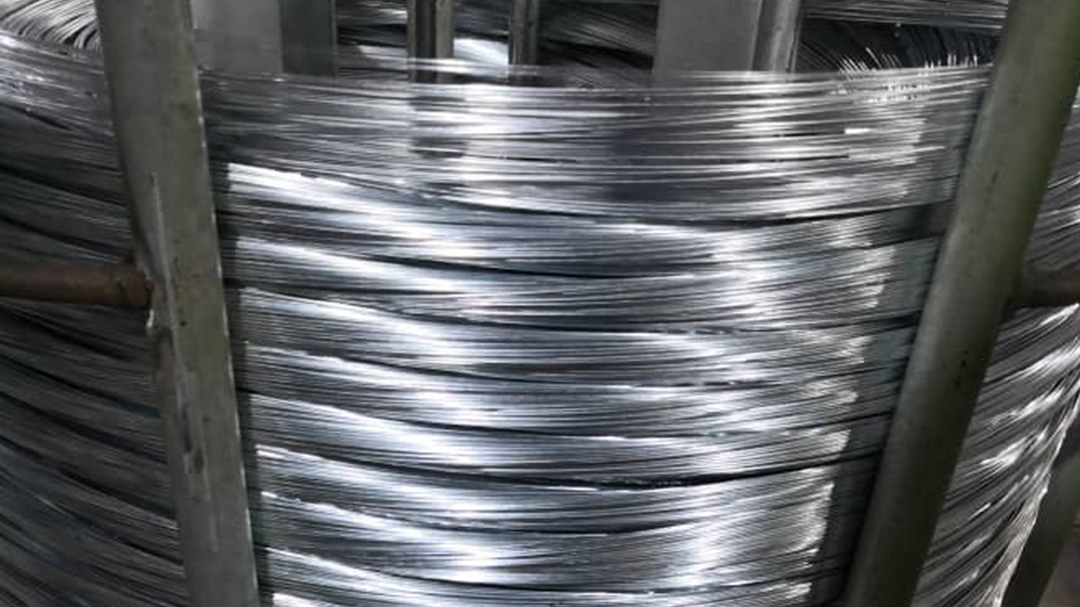

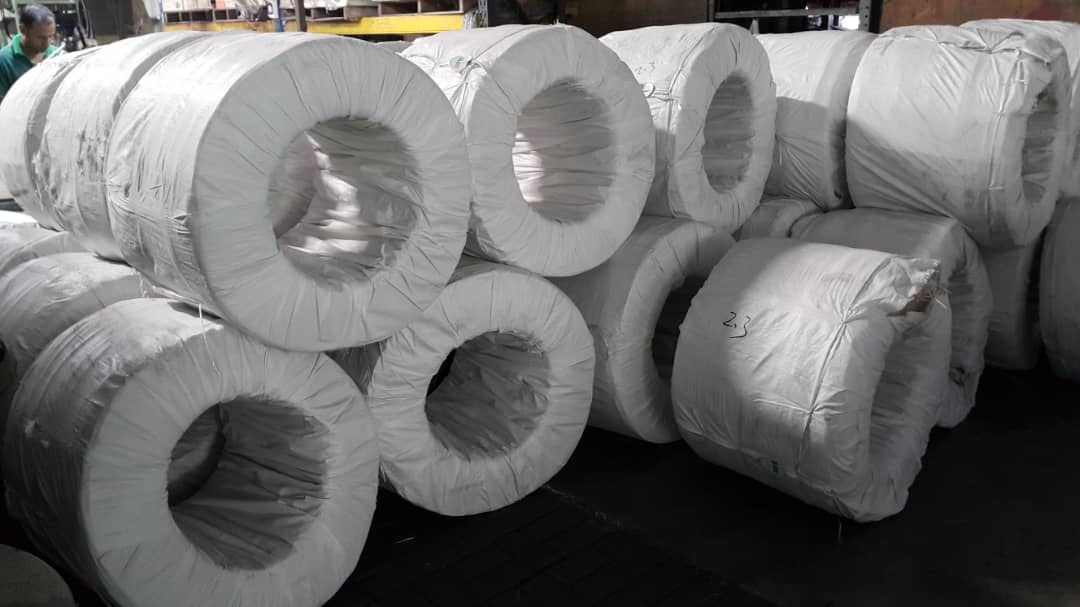

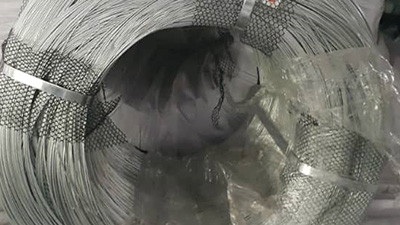

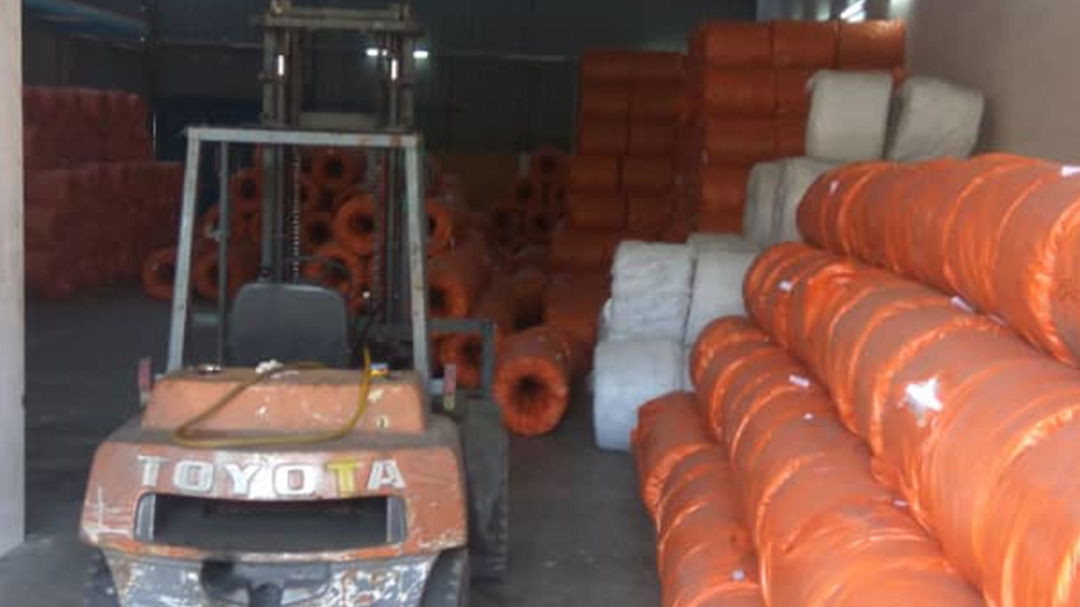

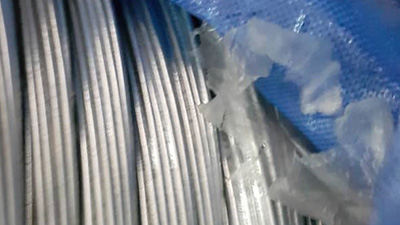

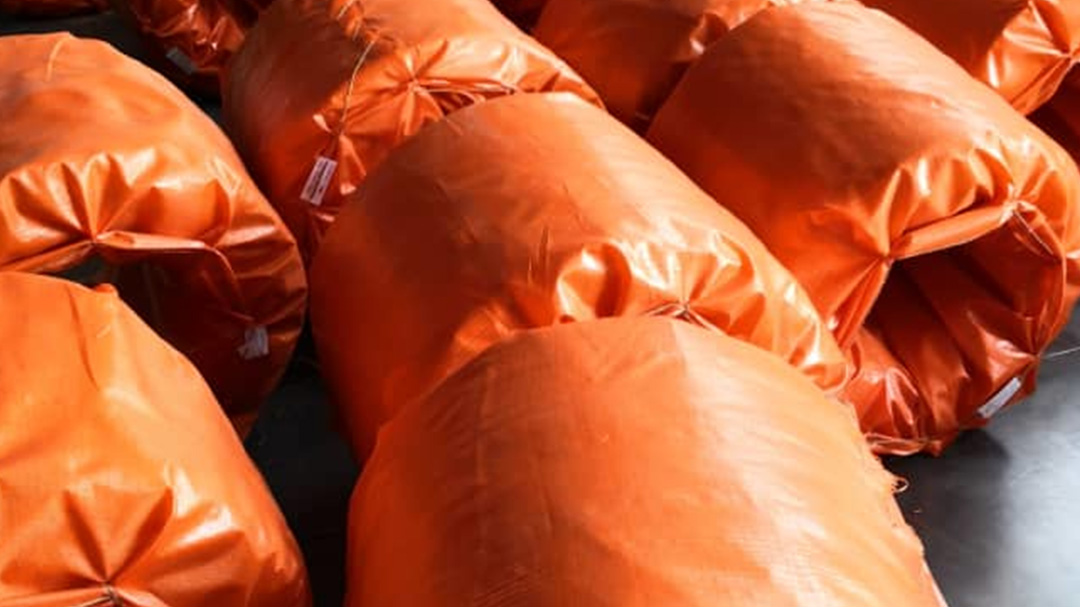

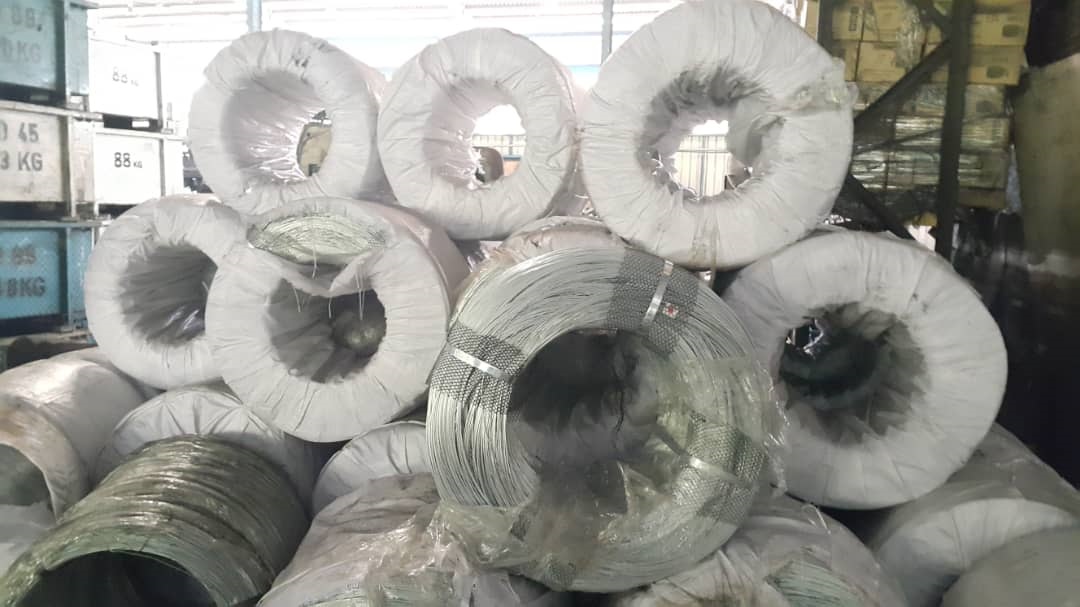

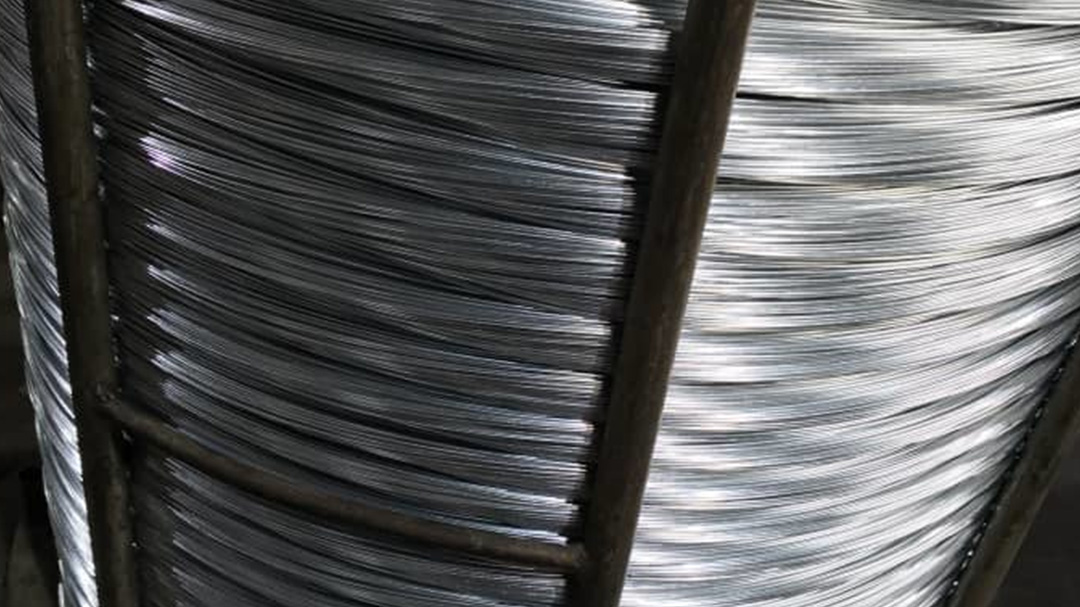

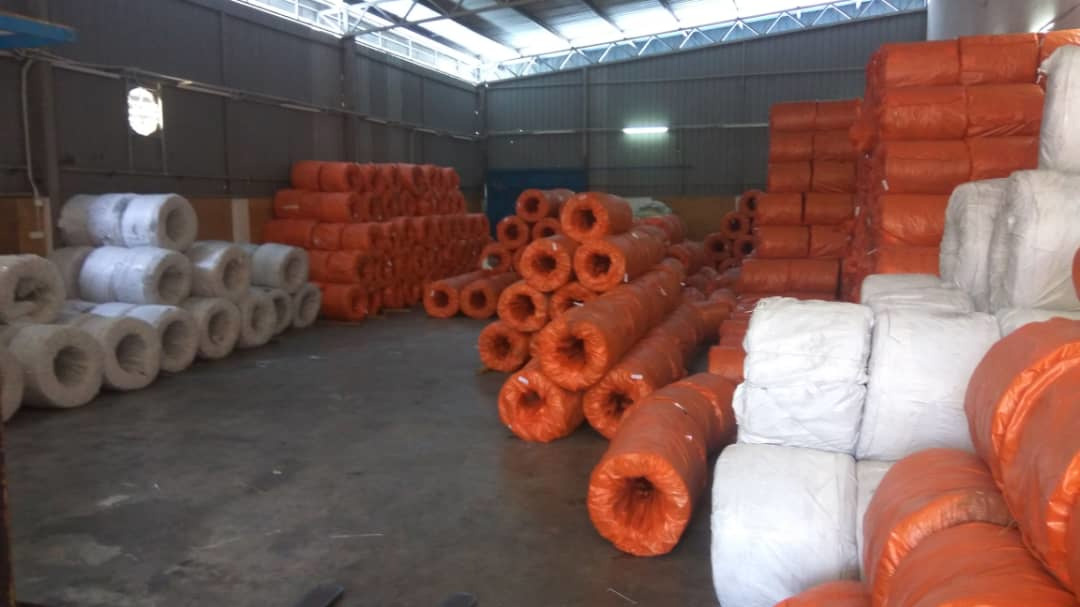

Gallery
